Technical data

Download

Patch list: .txt
Minimum requirements: .txt
Stage plan: .pdf , .jpg, .gif.

Patch list

1. Bassdrum AKG D112 / C5600
2. Snare SM57
3. Hihat AKG C1000
4. Timbale SM57
5. HiTom SM57
6. MidTom SM57
7. floorTom AKG D112
8. Overhead L AKG C391B
9. Overhead R AKG C391 B
10. Bassguitar AKG D112 or DI Box
11. Keyboard L DI Box
12. Keyboard R DI Box
13. Keyboard L DI Box
14. Keyboard R DI Box
15. Guitar 1 SM 57/ Beta 57
16. Trumpet SM 57
17. Sax 1 Beta 5
18. B Voc (KeyB)
19. B Voc (drms) SM 58
20. Leadvoc SM 58                or equal
21.

22.

23. Minimum requirements

• Apropriate front of house (FOH) P.A.
• Mixer (Soundcraft, Midas, Yamaha...) min. 22 chan. + 2 stereo effect returns
• Parametric EQ's: pro channel (sweep mid+high)
• Monitor mix (separate podiummix if possible) min. 6 lines
• TC electronic M1 or M2000, YamahaSPX 990 (Reverb)
• TC electronic D2, YamahaSPX 990 (Delay)
• Compressor dbx (L V)      insert chan 22
• Compressor dbx (B V)      insert chan 21
• Compressor dbx (B V)      insert chan 20
• Compressor dbx (B V)      insert chan 19
• Compressor dbx (Sax)     insert chan 18
• Compressor dbx (sax)     insert chan 17
• Compressor dbx (Trump) insert chan 16
• Compressor dbx (bass)    insert chan 10
• 6 Gates (Bassdrm, Sn, Timb, Htom, Mtom, Ftom) insert chan. 1, 2, 4, 5, 6, 7
• 31-bands stereo equalizer for FOH
• 31-bands stereo equalizer for each monitor line
• Talkback function
• Lights (min. 8x Par 65=4 kW in small places) with different color filters

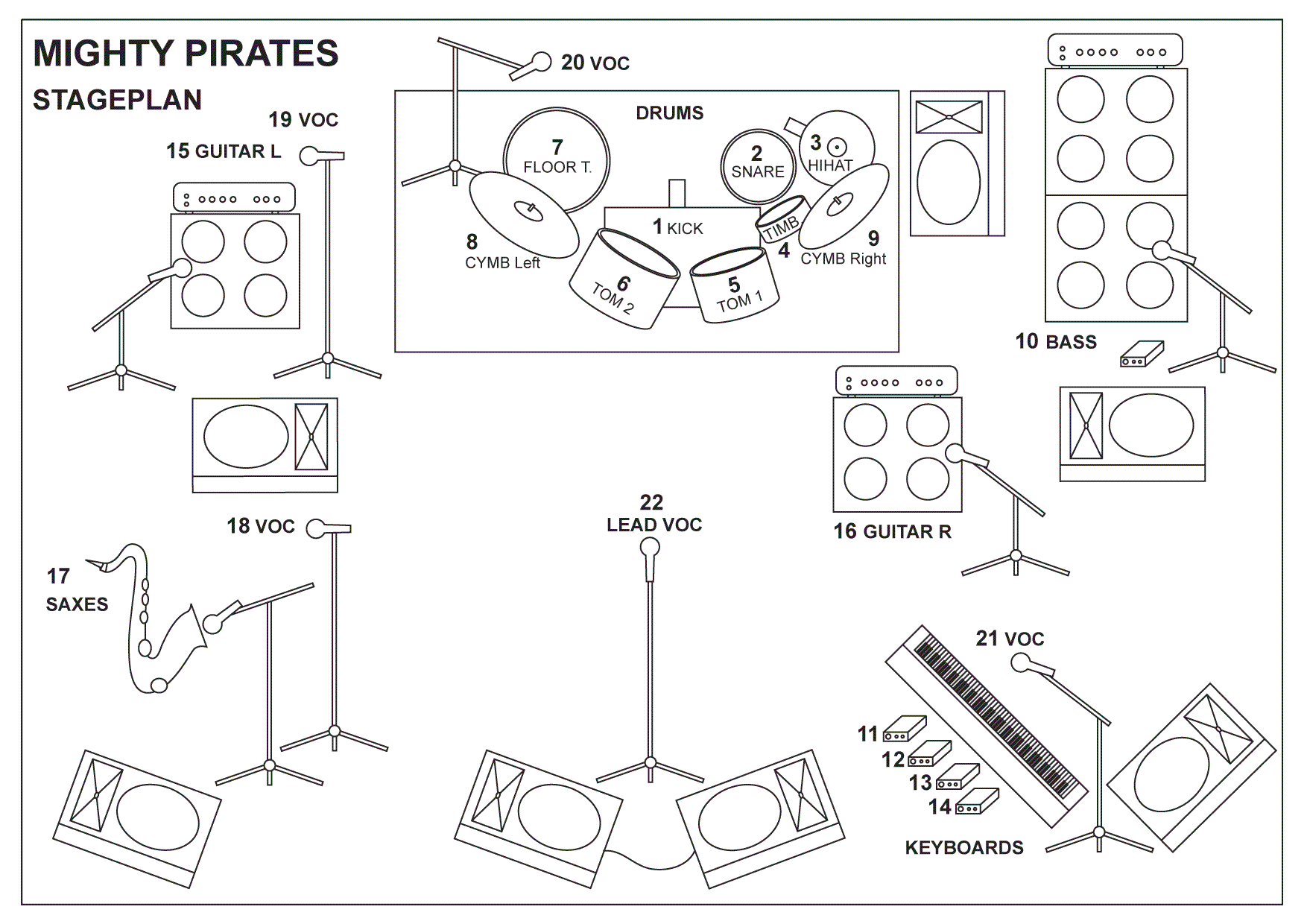

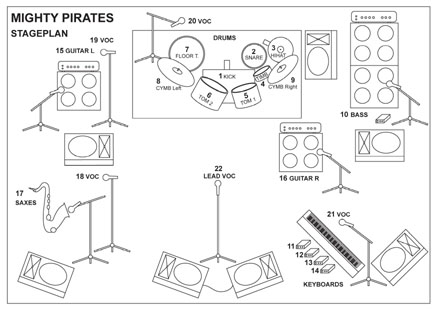

Stage plan
